Secure Your Water Supply with Industrial-Grade Precision

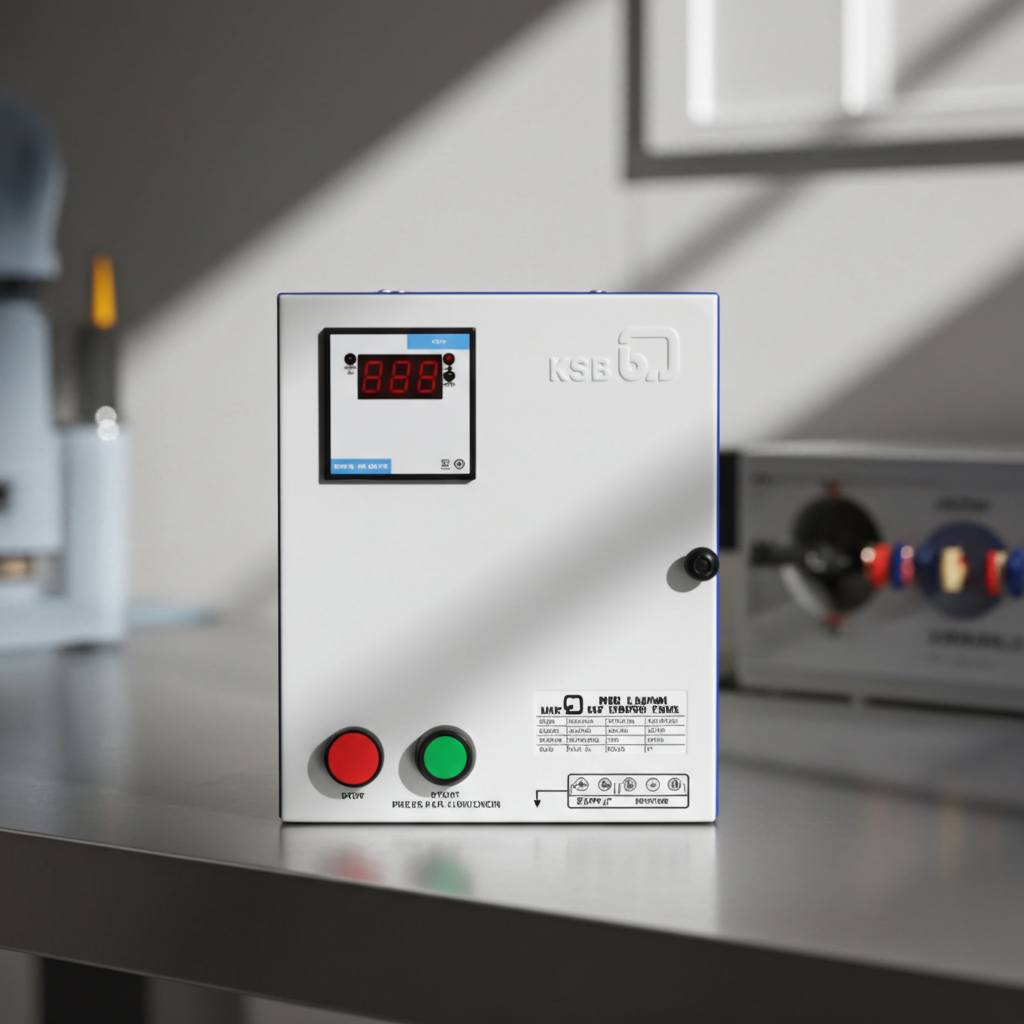

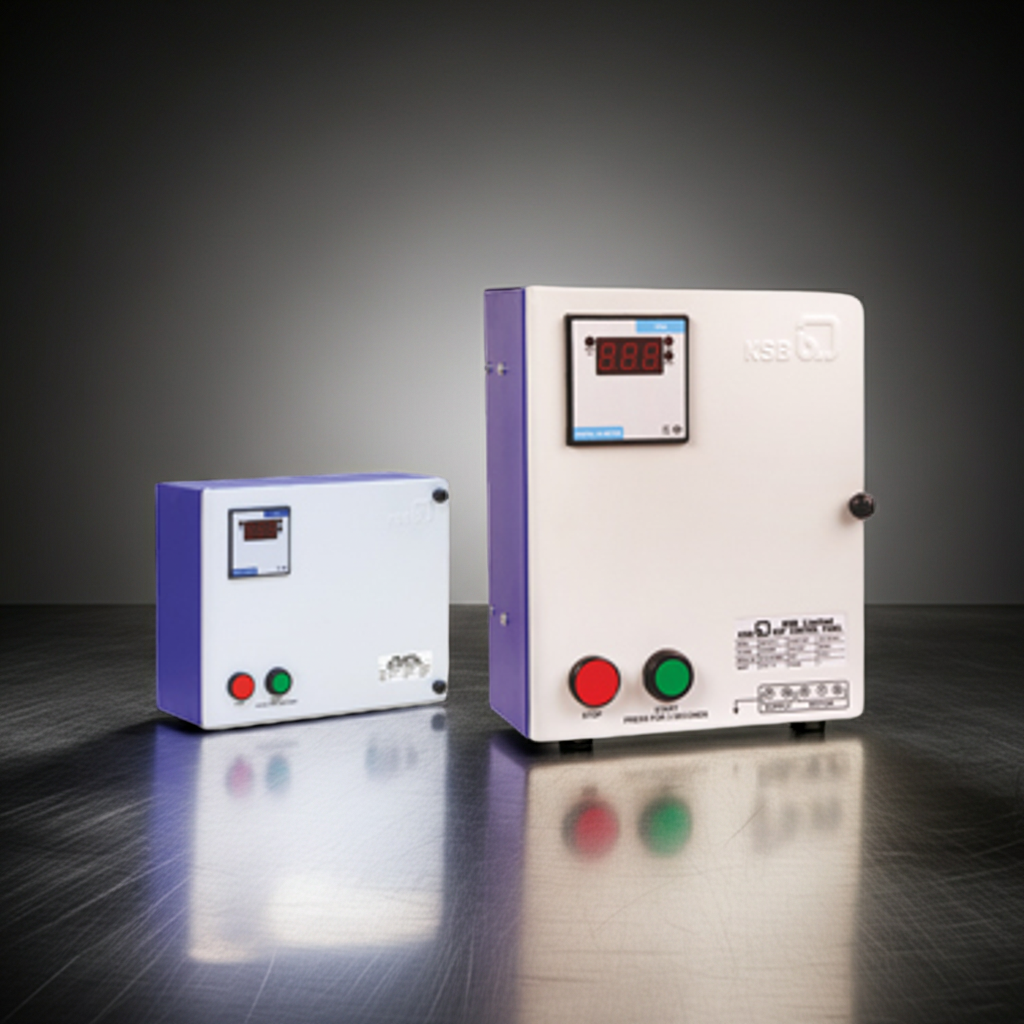

Stop worrying about motor burnouts and voltage fluctuations. The KSB KGP-LP 15 Controller is engineered to be the vigilant guardian of your 1.5 HP submersible pump. Designed specifically for the KSB LX+ series and compatible with most single-phase motors, this control panel combines German engineering trust with rugged Indian durability.
Whether for agricultural irrigation or residential water management, the KGP-LP 15 ensures your pump runs efficiently and safely. Housed in a robust, powder-coated metal box, it withstands harsh environments while providing precise control over your water systems. It’s not just a switch; it’s an insurance policy for your expensive water pump.
Why Professionals Choose the KGP-LP 15:
- Advanced Motor Protection: Built-in variable overload relay (9-14A) automatically cuts power during surges, preventing costly motor damage.
- Optimized Starting Torque: Features a high-capacity Start Capacitor (120-150 MFD) for instant, lag-free pump ignition every time.
- Built to Last: The heavy-duty, powder-coated sheet metal enclosure resists rust, dust, and impact for years of reliable service.
- User-Friendly Interface: Equipped with 'Impresso' push buttons and a clear digital VA meter for easy operation and monitoring.
- Hassle-Free Maintenance: Designed with a 5-way connector strip and easily replaceable heavy-duty capacitors to minimize downtime.
Frequently Asked Questions
Is this controller compatible with other pump brands?
Yes. While the KGP-LP 15 is optimized for KSB pumps, it is compatible with most 1.5 HP single-phase submersible pumps, provided the motor's current rating falls within the 9-14 Amp range.
What does the amperage range (9-14A) mean?
This indicates the operating current of your pump. The relay inside this panel can be adjusted between 9 and 14 Amps to match your specific motor, ensuring precise protection against overloads.
Does this panel include capacitors?
Yes, it comes pre-installed with both a Start Capacitor (120-150 MFD) for high starting torque and a Run Capacitor (50 MFD) for smooth continuous operation.
Is it suitable for outdoor installation?
The casing is powder-coated and durable, but it is rated IP54 (splash resistant). We highly recommend installing it under a shelter or inside a pump house to protect it from direct heavy rain and direct sunlight.
